12v 24v Automotive Parking Cooler for Heavy Truck

SKU: AC.161.064-2 Category:

Description

12V PARKING COOLER

Product Specification

Parking cooler doesn’t need to be driven by the engine, fuel saving is the main purpose, and it can also be used when parking, which is convenient for truck owners.

Brand: ACTECmax
Model: AC.161.071
Rated voltage DC 24V
Rated cooling capacity/DC conversion:500/2200W
Whole rated current / DC frequency conversion:8/40A
Rated evaporation air volume:200/560m /h
Rated curre:4.2A(High speed)
Condensation air volume:2200m³/h
Refrigerant charge:600±20g R134a
Refrigeration oil model:90-120ml POE 68
Electric scroll compressor:24V 800W
outdoor size:47*29*38cm
indoor size:46*16*32cm

AC.161.071.01
Rated voltage DC 12V
Rated cooling capacity/DC conversion:500/2200W
Whole rated current / DC frequency conversion:8/40A
Rated evaporation air volume:200/560m /h
Rated curre:4.2A(High speed)
Condensation air volume:2200m³/h
Refrigerant charge:600±20g R134a
Refrigeration oil model:90-120ml POE 68
Electric scroll compressor:24V 800W
outdoor size:47*29*38cm
indoor size:46*16*32cm

Parking cooler can be used in various models of heavy trucks, light trucks, RVs, construction vehicles, excavators, modified vehicles, electric vehicles, refrigerated vehicles, etc.



Application

The Features of AC,161.071

Fully automatic remote control intelligent frequency conversion system, according to the temperature change in the cab, automatically adjust the pressure Shrink machine power. The air inlet and outlet adopt frequency conversion device, and the air inlet and outlet are dual-regulated, which is more energy-saving and energy-saving ,Electricity prolongs the use time, and the parking time is longer.

1.Large LCD display
The working status is clear at a glance, real-time monitoring of the working status of the parking cooler.
Three modes, one-key adjustment.
Freely switch between high and low temperature.
Control the wind speed as much as you like.

2.Overall lightweight design
Adopt the plastic shell design with light weight, small size and upgraded technology, fashionable and beautiful, anti-aging.

3.High-power cooling fan,sophisticated and powerful compressor
The automotive parking cooler adopts 7-blade cooling fan, with large wind, fast heat dissipation and low noise.
Using stable performance compressor, strong work, high efficiency, energy saving and power saving

4.large heart-warming designs make safety more convenient and maintenance more convenient

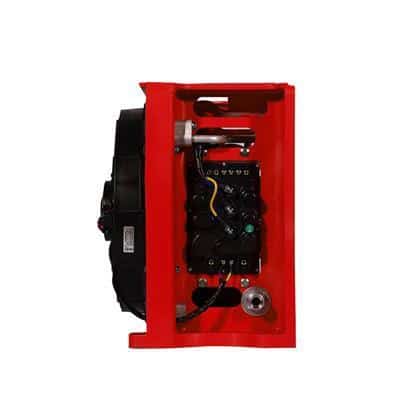

Optional mounting holes
The wiring terminals are exposed, making maintenance more convenient

The advantages of AC,161.071

1.Small and light
2.Ventilation and heat dissipation
3.Easy maintenance
4.Easy to install
