ACTECmax Manual Hydraulic Hose Crimping Tool

Hydraulic pressure tool? A/C Hose Crimper Kit dark box

Goods name: Hose Crimping Tool, Manual Hydraulic Hose Crimping Tool
MODELO:intl-hydraulic crimper-0036 dark box

Lightweight hand-held and portabl

Pre-operation set-up
Open the relief valve to fully recess the piston.Then,close tightly.
Rotate the yoke fully counter clockwise to bottom out the adapter seat.

Operating Instructions
WARNING:Do NOT actuate the piston without having a hose and fitting in place to crimp.This could

cause damage to the tool.BE CAREFUL not to place hands near any pinch point while using the tool!

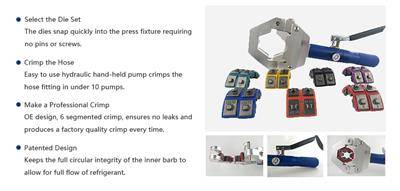

Features:
dies snap quickl into place requiring no pins or screws
Unit can be easily mounted to a bench using the holding fixture (included) or a vice

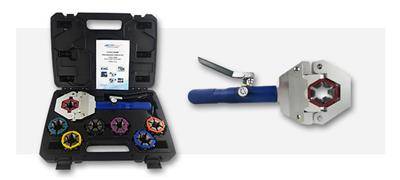

Includes:

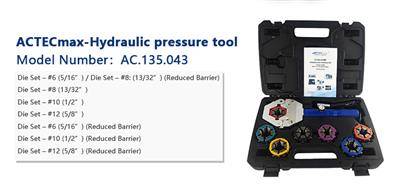

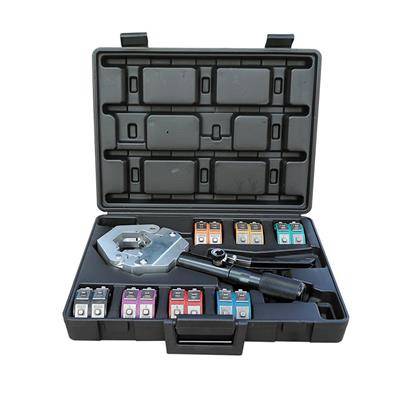

Hydraulic A/C Hose Crimper kit is applicable for beadlocking fitting.The tool includes seven
sets of dies for barrier a/c hose.The crimping tool has a base that can be mounted to a bench
for easy use ,or the base can be held by any vise..
