bus blower motor

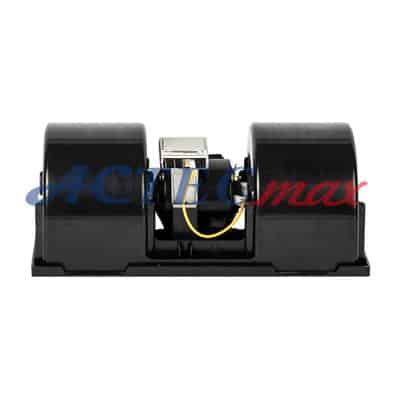

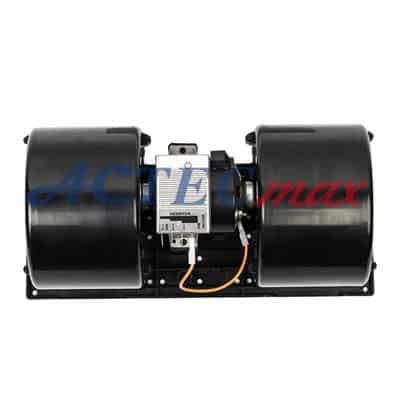

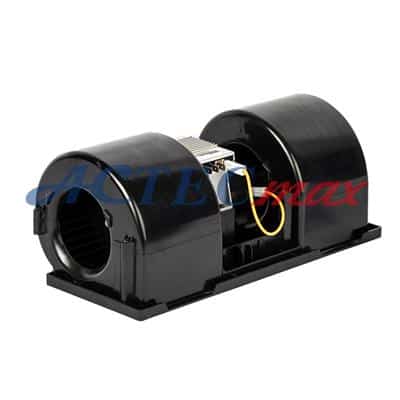

Evaporator Blower for BUS A/C 006-B40-22 BMT0035 006-Β40-22

SKU AC.117.1203 Category

Description

Evaporator Blower is the major part of the bus a/c system. The bus evaporator blower is suitable for passenger cars, trucks, engineering vehicles and refrigerated vehicles.And beacuse of the bus blower motor is universal type, it can appy to various models such as Yutong, King Long, Higer, Volvo, King Long, Hengtong, Foton, Zhongtong, etc.



The evaporator has resistor and no resistor type.

Product Model: AC.117.1203
OURBINE BUS A/C 006-B40-22 ,BMT0035, 006-Β40-22, 72235002
Test voltage:27v
Working Voltage:24V
Current:≤9A
Air flow:≥1000m3/h
Speed:3600±200
Static pressure:100pa
Life time:≥ 5000 hours
Warranty:13 months

Product Model: AC.117.1203.01

OURBINE BUS A/C 006-Β40-22 BMT0035, 006-Β40-22, 72235002,
Working Voltage:12V
Current:≤9A
Air flow:≥1000m3/h
Speed:3600±200
Static pressure:100pa
Life time:≥ 5000 hours
Warranty:13 months
Speed resistor: 3speeds
Product Model: AC.117.1203.02
OURBINE BUS A/C 006-Β40-22,BMT0035, 006-Β40-22, 72235002,
Working Voltage:12V
Current:≤9A
Air flow:≥1000m3/h
Speed:3600±200
Static pressure:100pa
Life time:≥ 5000 hours
Warranty:13 months Speed resistor: 4 speeds
Product Model: AC.117.1203.03
OURBINE BUS A/C fan
Working Voltage:24V
Current:≤9A
Air flow:≥1000m3/h
Speed:3600±200
Static pressure:100pa
Warranty:13 months
Speed resistor:4 speeds
Cross reference: 006-Β40-22 24V,BMT0035, 006-Β40-22, 72235002
Product Model: AC.117.1203.12
OURBINE BUS A/C 006-B40-22 24V,BMT0035, 006-Β40-22, 72235002,
Test voltage:27v
Working Voltage:12V
Current:≤9A
Air flow:≥1000m3/h
Speed:3600±200
Static pressure:100pa
Life time:≥ 5000 hours
Warranty:13 months
Product Model: AC.117.1203.24
OURBINE BUS A/C 006-Β40-22 BMT0035, 006-Β40-22, 72235002,
Working Voltage:24V
Current:≤9A
Air flow:≥1000m3/h
Speed:3600±200
Static pressure:100pa
Life time:≥ 5000 hours
Warranty:13 months Speed resistor: 3speeds

Additional information

Car type

NISSAN
