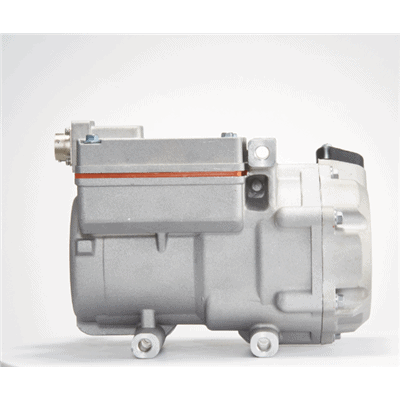

27cc 312v electric driven ac compressor

SKU: AC.100.3078 Categories: ,


China manufacturer 27cc 312v electric driven ac compressor for car

Product Specification

  1. Brand: ACTECmax
  2. Model: AC.100.3078
  3. speed:4500rpm
  4. cooling capacity:3500W
  5. Displacement: 27 (cc/rev)
  6. Rated voltage: 312 (v)
  7. Refrigherant:R134a
  8. Voltage range:220V-425V


1, High cop
2, Low noise
3, High-reliability long life
4, Saving energy and protecting the environment
5, Easy to assemble
6, Over-voltage and under-voltage protection
7, DC-driven by PMSM, DC brushless motor
8, Locked-rotor protection and 1 current limiting protection
9, Automatic reset
10, Soft starting
11, Intellectualized design
12, Improve comfortable of air conditioner system
13, Free of waste gas, zero exhaust due to electrical energy is driven. High efficient and energy saving
14, The compressor is smaller, lighter and intergraded the driver with the compressor body
15, Multiple control modes like GEAR, PWM and switch on/off, the high precision orbiting and fixed scroll can ensure the compressor with a long life
16, Several high technologies are used inside the compressor to decrease operation noise and vibrations
17, High skilled R&D team, high precision CNC machine, and test equipment.

Certificate: ISO9001, TS16949, and TUV standard
